In areas with sensitive hygienic requirements such as food production, cleanliness is a critical factor. MJ Food and Sanitary Pump fulfills the strictest hygiene requirements in the pharmaceutical, cosmetics, chemical, food and beverage industries, conveying various viscosity substances with minimal shear effect. They ensure sanitary pumping and thus product quality at all times in compliance with 3-A Sanitary Standards, regardless of the pumping application.
Flow rate：Q ≤ 140 m3/h (620 USGPM)
Pressure：P ≤ 24 bar (350 psi / 2.4 MPa)
Hygienic Design & Certifications
| Residue-Free Cleaning
| |
Gentle & Precise Conveyance
| Versatile Installation & Operation
| |
High-Pressure Efficiency
| Easy Maintenance
| |
Broad Application Range
|
|

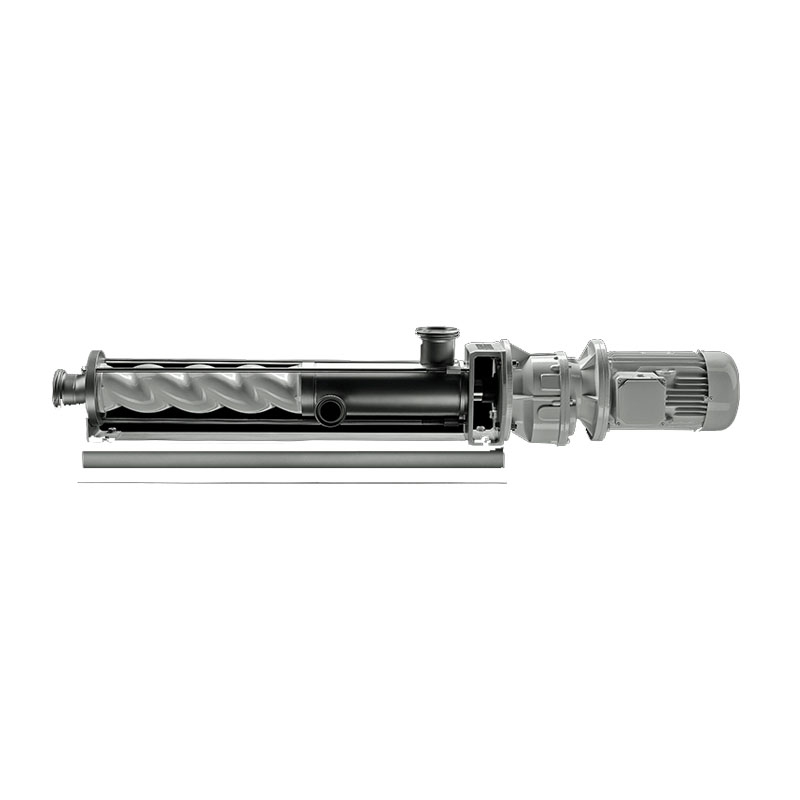

MJ series S-type progressive cavity pump selection table
| Pump Model MJ | Max. allowable particle size (mm) | Standard speed n (r/min) | Working pressure P (bar) | Flow/water as the medium Q (m³/h) | Water medium axis power P (kw) |
| 015-02S12 | 2 | 200~1000 | 0~12 | 0.02~0.52 | 0.14~0.34 |
| 021-02S12 | 3 | 200~795 | 0~12 | 0.11~1.17 | 0.16~0.55 |
| 031-02S12 | 4.5 | 160~630 | 0~12 | 0.3~2.88 | 0.48~1.25 |
| 038-02S12 | 7 | 160~630 | 0~12 | 0.30~7.80 | 0.9~3.2 |
| 045-02S12 | 8.5 | 125~500 | 0-12 | 0.90~103.8 | 1.3~4.1 |
| 053-02S12 | 10 | 125~500 | 0-12 | 0.80~18.52 | 1.7~7.5 |
| 063-02S12 | 17.5 | 100~400 | 0-12 | 0.00~24.8 | 2.5~9.2 |
| 076-02S12 | 15 | 100~400 | 0-12 | 1.00~41.6 | 4~16 |
| 090-02S12 | 18 | 80~315 | 0-12 | 4.00~55.37 | 5.5~20 |
| 105-02S12 | 21 | 80~315 | 0~12 | 6.00~93.05 | 8~35 |
| 125-02S12 | 25 | 63~250 | 0~12 | 5.00~124.30 | 11~44 |
| 148-02S12 | 29 | 63~250 | 0~12 | 15.00~208.10 | 17.5~75 |
MJ series L-type progressive cavity pump selection table
| Pump Model MJ | Max. allowable particle size mm | Standard speed n (r/min) | Working pressure P (bar) | Flow/water as the medium Q (m³/h) | Water medium axis power P (Kw) |
| 015-01L06- | 2 | 160~795 | 0~6 | 0.10~0.74 | 0.1~0.25 |
| 021-01L06- | 3 | 160~630 | 0~6 | 0.30~1.74 | 0.25~0.50 |
| 031-01L06- | 4.5 | 160~630 | 0~6 | 0.90~5.23 | 0.4~1.1 |
| 038-01L06- | 7 | 125~500 | 0~6 | 1.50~11.70 | 0.7~2.75 |
| 045-01L06- | 8.5 | 125~500 | 0~6 | 3.00~20.60 | 1.2~4.4 |
| 053-01L06- | 10 | 100~400 | 0~6 | 4.50~29.10 | 1.7~5.5 |
| 063-01L06- | 12.5 | 100~400 | 0~6 | 5.00~49.20 | 2.4~8.9 |
| 076-01L06- | 15 | 80~315 | 0~6 | 12.00~65.40 | 3.5~13 |
| 090-01L06- | 18 | 80~315 | 0~6 | 15.00~111.00 | 5.5~24 |
| 105-01L06- | 21 | 63~250 | 0~6 | 20.00~138.40 | 8~29 |
| 125-01L06- | 25 | 63~250 | 0~6 | 43.00~244.90 | 9~44 |
| 148-01L06- | 29 | 63~250 | 0~6 | 56.00~411.00 | 13~57 |
MJ food and hygienic pump is primarily used for mediums with the following characteristics: ● Shear sensitivity ● Viscosity ranging from low to high ● Lubricating or non-lubricating properties ● Media containing or not containing solid materials ● Thixotropic and swelling properties ● Abrasiveness ● Viscosity Examples include yeast, cream, mustard, mayonnaise, yogurt, cheese, ointments, thick sauces, eggs, milk, curds, honey, jam, syrup, ketchup, natural yeast, and various other materials. |  |
