Open Hopper Progressing Cavity Pump

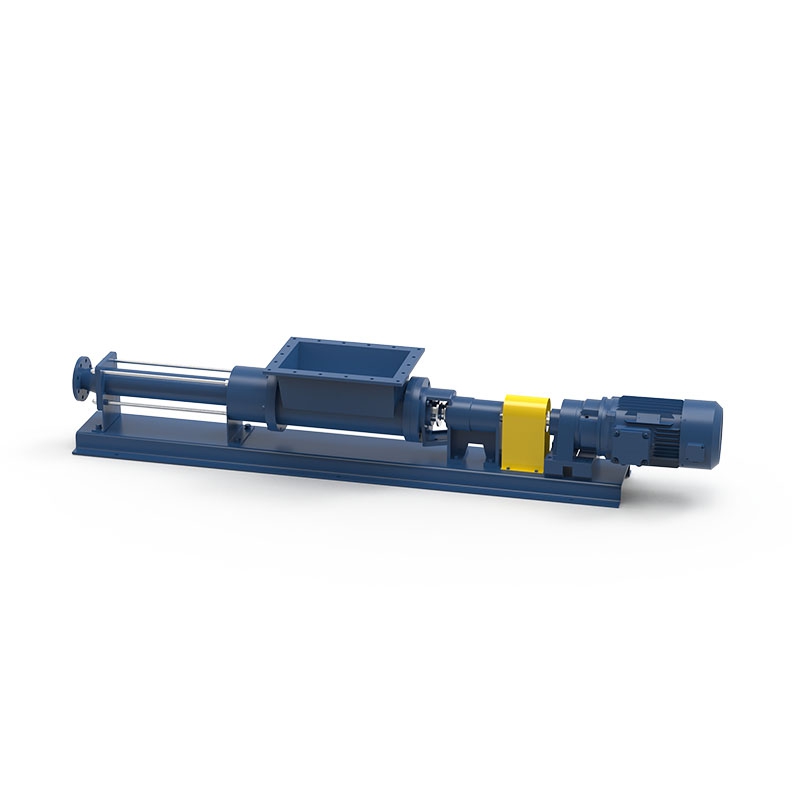

The MJ Hopper Progressing Cavity Pump is a versatile pump. Featuring a large rectangular hopper, screw conveyor, and compression chamber, this pump effortlessly handles high-viscosity, non-free-flowing materials.

Flow rate：Q ≤ 200 m3/h (880 USGPM)

Pressure：P ≤ 48 bar (700 psi / 4.8MPa)

Description
Parameter Table
Application
Make an inquiry

Optimum Product Conveyance

Large rectangular hopper, trumpet-shaped extrusion chamber, and horizontal screw feeder ensure efficient material transfer into the rotor-stator cavity.

Flexible Drive Configuration

Available in two variants: direct-flanged drive system (compact block design) or traditional bearing housing with free bare shaft for plug-in versatility.

Adaptable Intake Design

Rectangular hopper length adjustable to align with upstream components, ensuring seamless integration into existing systems.

Robust & Corrosion-Resistant

Engineered for abrasive and corrosive media; coupling rod with feeding blades forces materials into sealed conveying chambers.

Modular Scalability

Variable modular system enables tailored solutions for cutting, mixing, or high-precision conveyance.

Easy Maintenance

Large inspection openings and quick-access designs minimize downtime, supported by modular components for swift replacements.

MJ series S-type progressive cavity pump selection table

Pump Model MJ	Max. allowable particle size (mm)	Standard speed n (r/min)	Working pressure P (bar)	Flow/water as the medium Q (m³/h)	Water medium axis power P (kw)
015-02S12	2	200~1000	0~12	0.02~0.52	0.14~0.34
021-02S12	3	200~795	0~12	0.11~1.17	0.16~0.55
031-02S12	4.5	160~630	0~12	0.3~2.88	0.48~1.25
038-02S12	7	160~630	0~12	0.30~7.80	0.9~3.2
045-02S12	8.5	125~500	0-12	0.90~103.8	1.3~4.1
053-02S12	10	125~500	0-12	0.80~18.52	1.7~7.5
063-02S12	17.5	100~400	0-12	0.00~24.8	2.5~9.2
076-02S12	15	100~400	0-12	1.00~41.6	4~16
090-02S12	18	80~315	0-12	4.00~55.37	5.5~20
105-02S12	21	80~315	0~12	6.00~93.05	8~35
125-02S12	25	63~250	0~12	5.00~124.30	11~44
148-02S12	29	63~250	0~12	15.00~208.10	17.5~75

MJ series L-type progressive cavity pump selection table

Pump Model MJ	Max. allowable particle size mm	Standard speed n (r/min)	Working pressure P (bar)	Flow/water as the medium Q (m³/h)	Water medium axis power P (Kw)
015-01L06-	2	160~795	0~6	0.10~0.74	0.1~0.25
021-01L06-	3	160~630	0~6	0.30~1.74	0.25~0.50
031-01L06-	4.5	160~630	0~6	0.90~5.23	0.4~1.1
038-01L06-	7	125~500	0~6	1.50~11.70	0.7~2.75
045-01L06-	8.5	125~500	0~6	3.00~20.60	1.2~4.4
053-01L06-	10	100~400	0~6	4.50~29.10	1.7~5.5
063-01L06-	12.5	100~400	0~6	5.00~49.20	2.4~8.9
076-01L06-	15	80~315	0~6	12.00~65.40	3.5~13
090-01L06-	18	80~315	0~6	15.00~111.00	5.5~24
105-01L06-	21	63~250	0~6	20.00~138.40	8~29
125-01L06-	25	63~250	0~6	43.00~244.90	9~44
148-01L06-	29	63~250	0~6	56.00~411.00	13~57

MJ hopper pump is primarily used for mediums with the following characteristics:

● High viscosity

● Compact

● Brittle

● Contains solid materials

● Shear-sensitive

● Lubricating or non-lubricating

● Thixotropic and expandable

● Abrasive

● Viscous

such as dewatered sludge, filter cake, viscous pastes, offal, bone meal, sausage paste, whole fruits, dough, potato mash, etc

If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
